150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

Kimpok Technology Co., Limited
Contact Now

150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

  • 1
  • 2

Brand Name : Kimpok

Model Number : KP-CM100H

Certification : EC/FCC/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 3-7 days

Packaging Details : export packing standard

Frequency : 300-900Mhz or other band customized

Power : DC 28V/AC 220V

Modulation : COFDM

Data port : RS232/485

Video port : BNC; HDMI/HD-SDI

Dimension : 490*450*90mm

Contact Now

150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

Hight Power COFDM Wireless Video Transmitter:

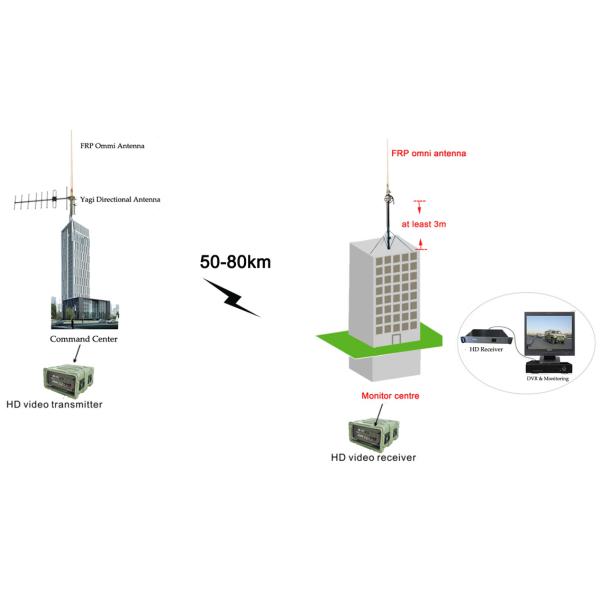

The KP-CM100H is a powerful COFDM digital video data transmitter from Kimpok. With latest COFDM modulation, narrow-band, and H.264 encoder technology as its code, the KP-CM100H COFDM HD video voice digital transmitter sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The high power and high definition make the KP-CM100H COFDM video transmitter ideal for large UAV super long range video communication and mobile vehicle to vehicle, or mobile vehicle to command center building wireless video communication applications, enabling true long range HD video data transmission.

Special features:

* 1080P high quality video images transmission
* strong safety with AES user-defined passwords

* ultra low latency, only 75ms
* 100Watts high power and low latency
* support NLOS and fast moving environments but still in stable signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission

Specification:

Voltage DC 28V/AC 220V
Bandwidth 2/2.5/4/8MHz
Frequency video 550MHz-600MHz stepped in 1MHz; other Frequency can be customized
Frequency data 150MHz
Modulation COFDM 2K
RF power 100W
FEC 1/2, 2/3, 3/4, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Video port BNC and SDI or HDMI
Data port RS232/485
Video resolution 1080P/i & 720P/i
Video coding H.264
Video format PAL/NTSC
Encryption AES128/256bits
Dimension 575*505*360mm
Weight 26kg
Parameter setting user manually setting via LCD display


150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

150km UAV HD Video Transmitter 100W High Power Wireless Video Link with GPS

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.

Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.
